Valve plants are everywhere and also are one of the most popular plants among similar industries. Single girder overhead crane is always applied in valve plants to improve working efficiency. Weihua crane is always here to offer the best solution for your plant. Here is one of the cases for your reference.
Customer company profile
It’s a Thailand company located in Rayong and founded in 2001. It is mainly providing Gasket and Valve maintenance services e.g. Safety Valve, Control Valve, Globe Valve, Butterfly Valve. Main gasket products include Semi-Metallic & Metallic Gasket (Spiral Wound Gasket, Camprofile Gasket (Kammprofile Gasket), Metal Jacketed Gasket, Ring Type Joint), Soft Gasket (Non Asbestos), Rubber Gasket, Gland Packing, Insulation Kits Type D, Insulation Kits Type E, Insulation Kits Type F, Graphite Ring, Silicone Gasket, Flexoid® Paper Gasket, Acid Resistant Gasket, Chemical Resistant Gasket, Oil Resistant Gasket, Heat Resistant Gasket, Insulating Textile, PTFE, GORE® Expanded PTFE, SGL SIGRAFLEX® Graphite, NR, NBR, EPDM, Neoprene(CR), VITON, Non-Asbestos Gasket, Graphite sheet, Graphite Tang, Graphite Foil, also laser cutting, and CNC cutting services.”

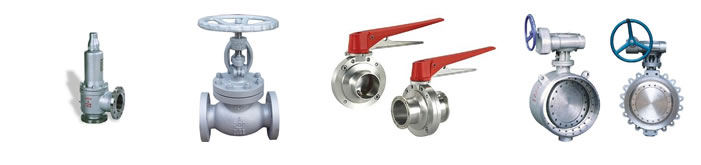

Valves of Thailand client of Weihua crane
Material handling requirements
The crane is used to lift valve production and maintenance. The maximum weight is 15ton and normally 5ton, lifting height 6m, warehouse width 15m, double speed. They have intermittent work some days they will not move. When busy they will possibly work 4 hours in 8.

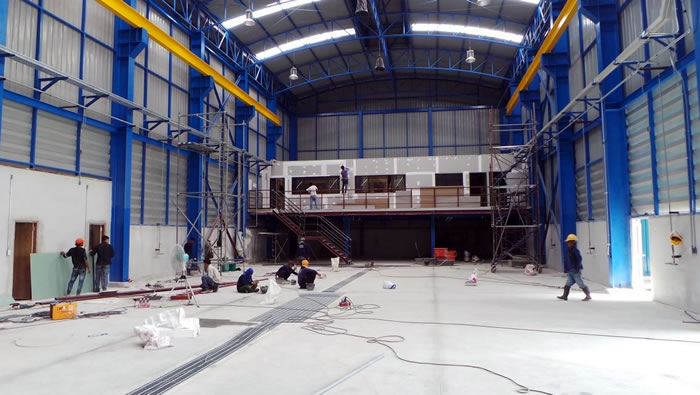

Client’s site under construction
Crane solution
According to client’s requirements, here is Weihua crane’ design suggestion: one set of single girder overhead crane 5ton, span 14meters, lifting height 6meters, double speed and one set of single girder overhead crane 15ton, span 14meters, lifting height 6meters, double speed. These two cranes traveling on the same rail. Weihua crane fully meets client’s requirements and improve their working efficiency.

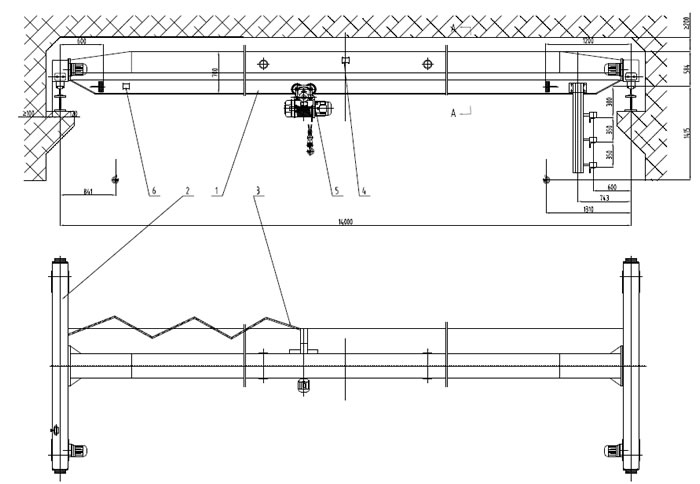

5ton overhead crane drawings

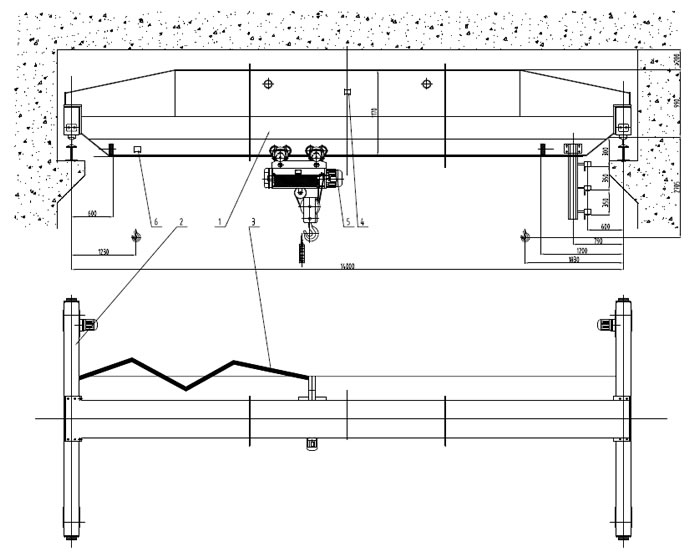

15ton overhead crane drawings
Features of Thailand valve plant overhead crane project
There are some special requirements of the overhead crane: lifting speed, painting.
1. on lifting speed
The valve is a kind of precision products, so it requires double speed to ensure smooth lifting. The double speed hoist can meet the requirements and is very cost-effective.
2. on crane painting
It is tropical monsoon climate in Thailand and the weather is wet in several months. So we use epoxy zinc-rich primer to protect it from rusting and corrosion.
Gallery of Thailand vale plant crane project

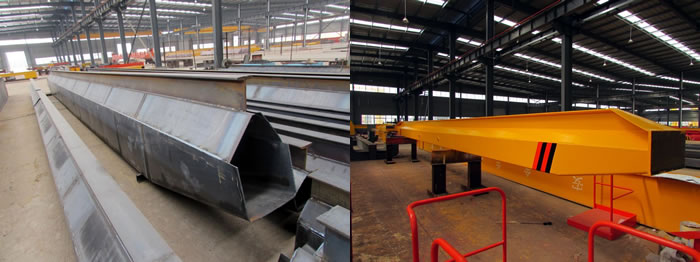

Overhead crane production

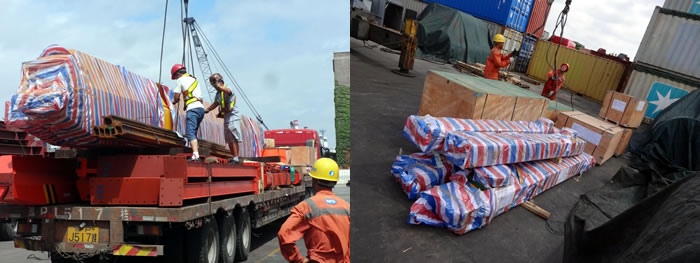

Overhead crane ready for delivery to Thailand

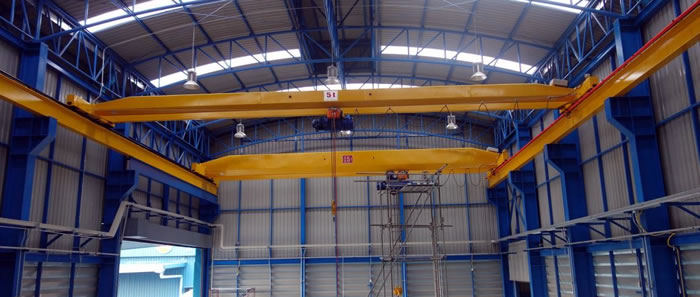

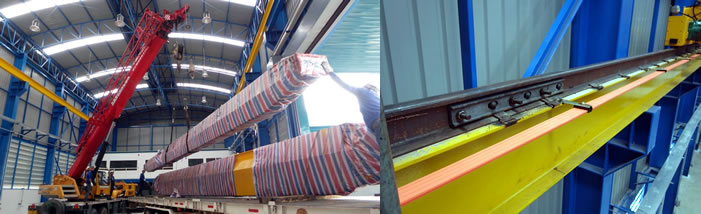

Overhead crane installation at the valve plant

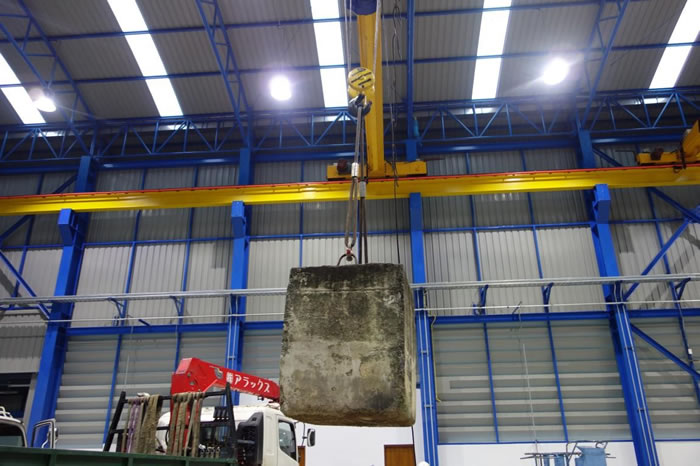

Crane tests to ensure crane operation safety
Conclusion
The crane installation is very successful and passed local professional tests. The client is very satisfied with our product and hard working. The overhead crane is not only work well, but also looks very beautiful in appearance. We win friendship, trust and gain more friends.
Weihua crane is here to lift you up. Optimal material handling solution for your applications.
