Steel coil plant is one of the most common factory in steel industry. Proudly, weihua has the chance to do a little contribution to make the steel coil production work more efficiency. The most suitable product is double girder overhead crane. Having served lots of steel factories, Weihua crane is experienced to provide optimal crane products and services for your factory or workshop. In the following, we will take one of Weihua crane’ cases for your reference.
Customer Company Profile
It’s a Bangladesh Coil plant. It was established in 2000, which first started in the manufacturing and distribution business of steel coil in world-wide market. The plant has set up a state-of the art Cold rolling Mill complex at Kumira 25KM from Chittagong. The Complex built on a 10 acre site, houses pickling line, 6 Hi CVC cold rolling Mill Slitting and rewinding line with an annual capacity of 250000MT. Main products are CRFH (Cold Rolled Full Hard), CRCA (Cold Rolled Closed Annealed), GPFH (Galvanized Plain Full Hard), GC (Galvanized Corrugated).

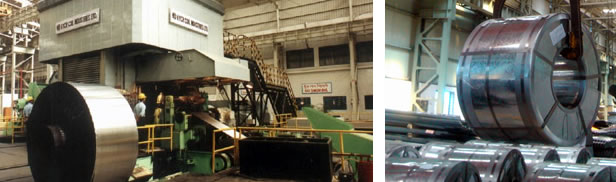

Steel coil products of Weihua crane’ client
Crane Requirements
The Bangladesh coil plant needs a set of material handling equipment to lift the standard sized steel coils, which cannot be held by crane hook only and the special lifting slings are needed. Most of the steel coils are final products, packed with delicate packages which needs to be handled tenderly with no rudeness. What’s more, the Bangladesh client wants the material handling equipment can perform almost 24 hours duty a day. Lastly and most importantly, the crane price must be cost-effective, durable quality with low price.
Crane Solution
According to the client requirements and the factory conditions, Weihua crane designs 1 set of 10 ton double girder overhead crane for the Bangladesh steel plant. The material handling solution of Weihua crane has the following advantages:
- Weihua crane uses Schneider electricals which is more suitable and cost-effective.
- Equipped with frequency converter which could adjust its speed in order to make the crane traveling more smoothly and steady.
- Weihua crane fully meets client’s requirements and improves their working efficiency.
- Less maintenance also saves much time and cost which satisfied client.

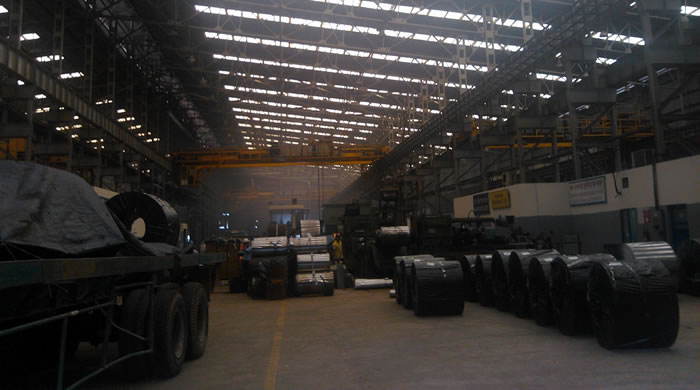

Workshop site
Crane Features
There are three obvious features of the Bangladesh overhead crane, the work duty, crane speed and high cost performance.
1) Work duty

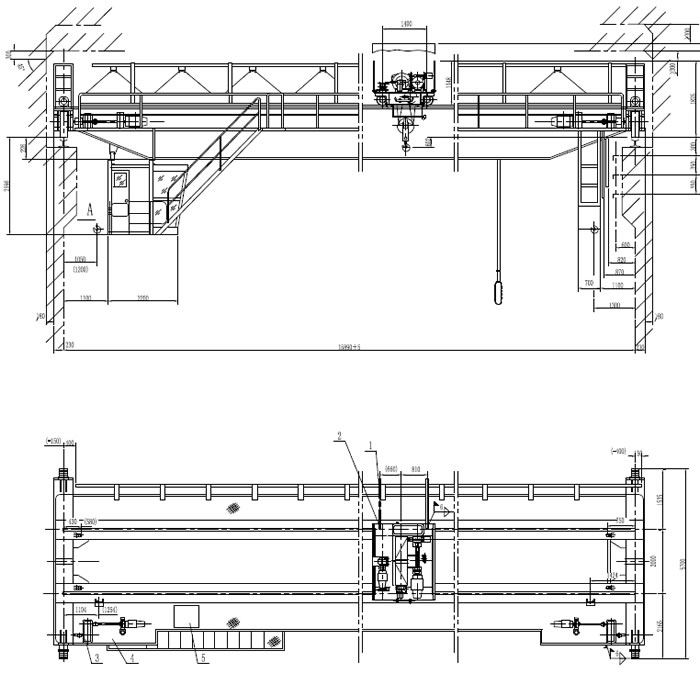

The crane will work 24 hours each and every day. The whole working time is very long, and one working cycle takes about 3 minutes, but with low working frequency. That’s to say, the breaking time between the working cycles is long. After calculation, A5 is enough and safe for crane operation condition. The drawings of the QD type Double Girder Overhead Crane 10 ton-15.89 m A5 is shown below:
Overhead crane drawings
2) Crane speed
In order to lift the steel coils with enough tenderness, DQCANES adopts Schneider frequency converter to adjust the crane and hoist speed which solves the problem perfectly.
3) High cost performance
On the condition of ensuring crane quality and safety, Weihua crane would like to save the cost as possible as we can. The optimal solution for clients is to provide the high quality material handling equipment with the most cost-effective price.

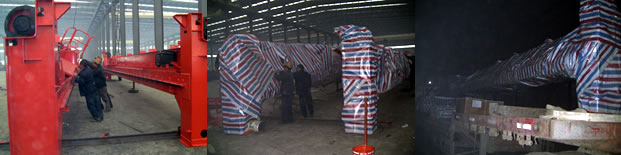

Crane Delivery
Crane Installation

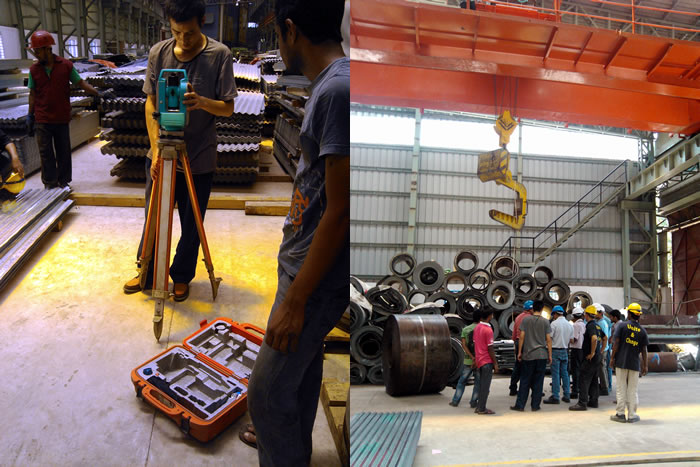

Crane Test

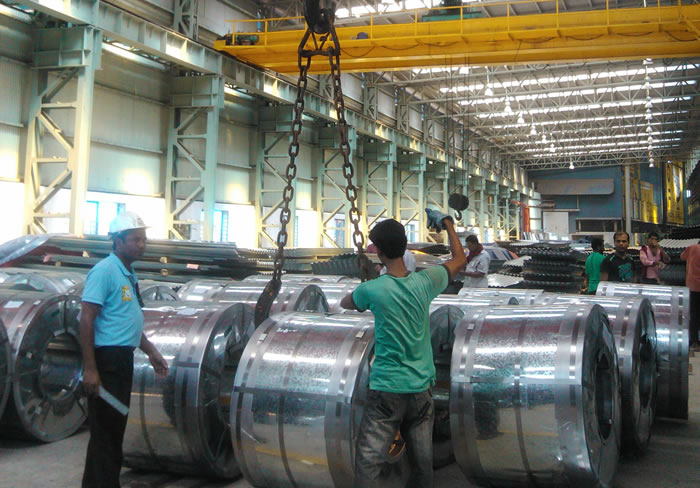

Operator Training
Conclusion
The best solution for client made us win trust and friendship.
Firstly, the design of overhead cranes for Bangladesh client meet all their requirements.
Secondly, client order spare parts for two consecutive years.
Last and most importantly, Weihua crane full set services gain client heart and they like to build long term cooperation with each other. Also become the high quality customer and start the business in Bangladesh.
