Product Deｓｃｒｉｐｔion:

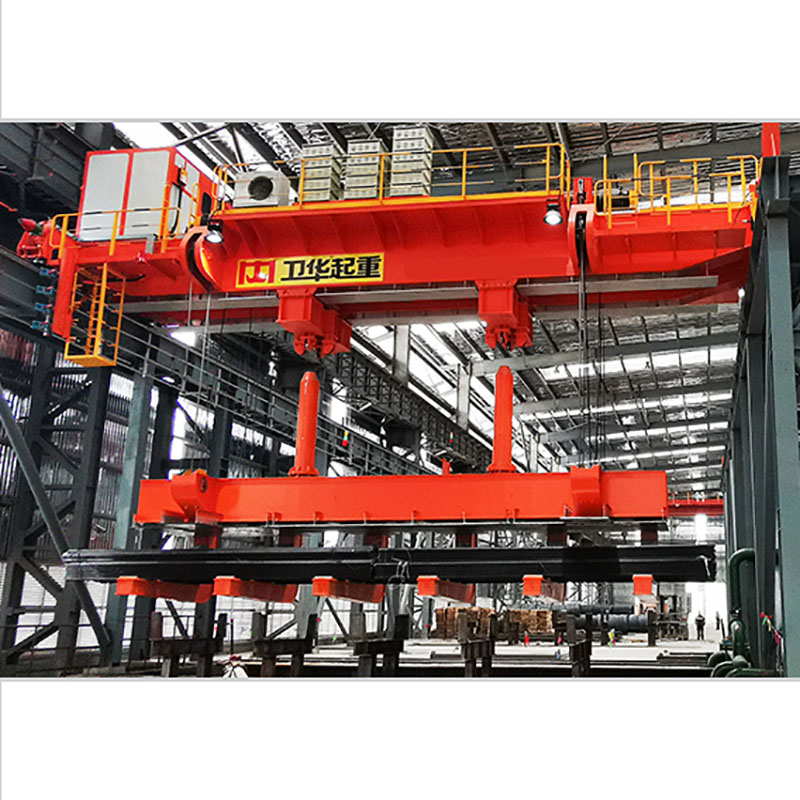

Weihua intelligent quenching crane is mainly used for hoisting high-temperature profiles or bars and performing quenching process.

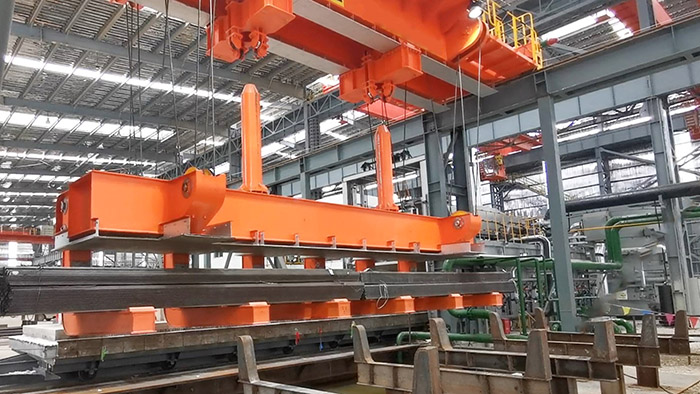

After the high-temperature bars come out of the furnace, they are transported to the designated location by a flat car, and the heat treatment crane is in place to hoist the high-temperature bars to the quenching pool and then descend for heat treatment.
Finally, it is lifted and placed in the designated position, and waits for the instruction before proceeding to the next working cycle.
Product Features
1. Weihua self-designed wire rope adjustment device
The hoisting mechanism adopts a single-drive double-drum structure, which can ensure the synchronization of the hoisting of the double hoisting points, and is equipped with a self-patented technology wire rope adjustment device, which can quickly level the spreader.
2. Weihua's self-patented anti-swing technology
The whole machine is equipped with rigid guide columns and horizontal guide wheels, which have the functions of anti-swing and precise positioning.
3. C-type hook special spreader
Equipped with a special spreader for C-hooks for quenching, multiple C-hooks are assembled with detachable pins, and the connection position is set on the side, which is convenient for later maintenance and effectively improves the hoisting space.
4. Intelligent control system
The control system is equipped with wireless remote control and ground central control, which is realized by wireless communication equipment of big brands
The remote control station interacts with the information on the vehicle, and has remote control and fully automatic control modes.
5. High precision positioning
The positioning system uses an absolute encoder and a position detection switch, which can be automatically corrected to avoid cumulative errors
Realize high-precision positioning.
6. Safe and efficient
The control system receives the instructions sent by the upper system to realize fully automatic operation, and has the functions of stable posture, gentle lifting, quick quenching, and anti-collision.
