Free standing mobile Jib Crane of introduction:

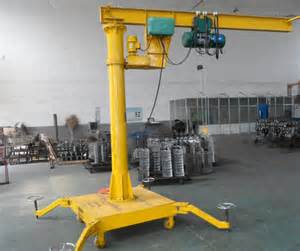

Free standing mobile Jib Cranes are directly fixed on the floor without any support to keep it upright. To maintain it's stability and not topple over it you fix it to a foundation of 3 to 5 feet deep and up to 4 to 10 feet square foundation base. The foundation depends on the load and reach. Advantage of this type of crane is it doesn't need a support wall or structure and provides optimal range of span and control compare to wall mounted cranes and other types of Jib cranes. The picture here shows a 2 ton free standing Free standing mobile Jib Crane used in a yard environment.
Free standing mobile Jib Cranes of parameter:
|
model |
BZ |
||||||||
|
capacity |
tons |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
16 |
|
|
Arm length |
m |
MAX.16m |
|||||||
|
Hoisting height |
m |
3,6,9,12,20 |
|||||||
|
Hoisting speed |
m/min |
8,8/0.8,7,7/0.7,3.5,3.5/3.5 |
|||||||
|
Travel speed |
m/min |
20,30 |
|||||||
|
Rotating speed |
m/min |
0.5r/min |
|||||||
|
Rotating degree |
degree |
360 |
|||||||
|
Wire rope |
Dia.(mm) |
3.6 |
4.8 |
7.4 |
11 |
13 |
15 |
17.5 |
|
|
spec. |
6×39 |
6×37+FC |
|||||||
|
power |
AC 380V,50HZ,3P |
||||||||
Free standing mobile Jib Cranes of Applications
1. Fitting & fabrication workstations
2. Building Maintenance
3. Plant room maintenance
4. Marine loading and maintenance
5. Machine core loading and maintenance to name a few applications
Free standing mobile Jib Cranes of Advantages
The versatility of a Free standing mobile Jib Cranes of is unmatched. Our Jib Cranes offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization. Free standing mobile Jib Crane be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.
